Product Detail

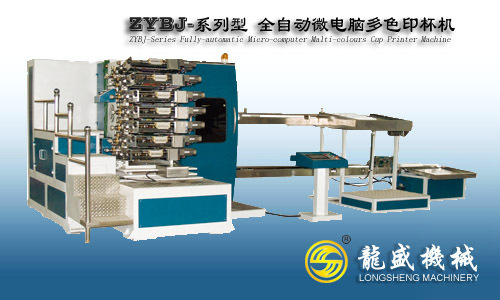

Multi colors plastic cup printing machine
1.Speed: 250-400pcs/min
2. Servo control
3. Advanced and comptitive at price

Features of the machine

1. The rubber covered rollers of the printing ink unit adopts high quality rubber, while ink vibrator is made from seamless tube and surface plated with hard chrome and ground as mirror. Every unit of printing ink device can be operated separately which easy to install and clean.

2. The big drum wheel is made from castings and surface is plated with hard chrome and ground as mirror. There is a tailor-made big gear connected with this big drum wheel.

3. The dividing box uses Guanhua brand of Zhucheng Shandong, China

4. Cup feeding device is consisted of 4 screws which can be adjusted as per cup size. The cup feeding shelf is available for more than 10 piles of cups at the same time to reduce labour force and avoid traditional difficulty on conveying high cup when bend radian of conveyor belt is too large.

5. Cup automatically piling in line will be conveyed to counting part. The counting part adopts screw transmission which is easy to adjust and the number of every pile of cups can be set freely. After counting, cups will be divided out and conveyed to packing position

6. The machine adopts PLC control to achieve easy operation, exact control, safety and reliability. Fault and corresponding measures can be shown by the touch screen.

7. The advantages of this machine include stable running, high speed, low vibration and long lifetime.

8. Adopts advanced color registered technology which allow registering color and adjusting when machine running. Pressure between the printing roller and big drum wheel also can be adjusted both when the machine running or stop, which reduce time for debugging and improve production efficiency.

9. Adopts high-speed curing system which include durable UV lamp and achieve good curing result

10. Optimized Corona device fits better to high speed corona to get better corona and uniform printing result.

11. Advanced transmission device for printing mould head ensure clear printing result. Printing circumference can be adjusted freely.

12. Unique auto air cooling device makes sure good printing quality and good heat emission for whole machine.

13. Automatic Identification system can automatically detect defective cup, no cup on mould head, double cups on one mould head, cups with hole. The machine will stop when those circumstance happen. So that to reduce waste and make sure quality.

14. Advance-and-retreat and angle adjustment of the host printing unit all adopt electrical control. Distance between mould head and printing rubber on the big drum wheel also can be accurately adjusted by electric device.

15. The electroplated machine frame looks more attractive and is more easy to clean. All outside closing plates is spray lacquered according to technology of motor vehicle, which looks nice and durable.

16. The machine is made according to European Union CE standard and is on a par with advanced cup printing machine at home and abroad.
